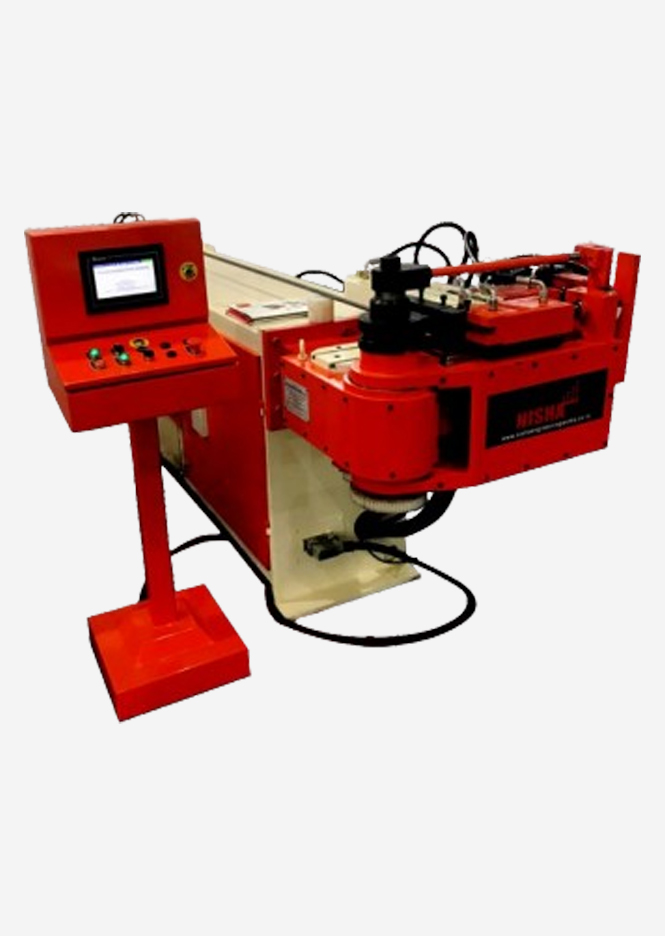

Tube Bending Machine Manufacturers in India
Nisha Engineering Works is one of the best Tube Bending Machine manufacturers in India, suppliers and exporters in India. We offer machines that work with high-precision and are designed to produce tube shapes free of distortion that help fabrication offices, engineering departments, auto part repair facilities and manufacturing locations. All its models are designed to ease the process of bending, minimize the use of hands, enhance uniformity in regular processes. We have always aimed at creating Tube Bending Machine in India that will increase safety and productivity as well as long-term performance in actual working conditions.
What is a Tube Bending Machine?
A Tube Bending Machine refers to an industrial machinery that is applied in bending metal pipes and tubes to a certain angle and shape without damaging their structure. It is similar to a controlled bending system in which the tube is clamped and bent around a forming die to form smooth uniform bends.
Types of Tube Bending Machines
As leading Tube Bending Machine manufacturers in India, Nisha Engineering Works provides bending machine in diverse capacities and design to meet diverse needs in the industries.
1. By Power Source
- Manual Tube Bending machine: These models are based on physical labour of the operator to either push or pull the tube around a forming die.
- Hydraulic Tube Bending Machine: By hydraulic pressure, these machines are more vigorous, move smoothly and have a higher level of accuracy.
- Electric Tube Bending Machine: They come with electric motors and can be bent and come in portable bench-top varieties and in larger models.
- CNC Tube Bending Machine: It is fully automated and computer-controlled and therefore exceptionally accurate and repeatable.
- Hybrid Tube Bending Machine: These systems have the combination of servo-electric drives and hydraulic assistance which provide high precision, speed, and flexibility.
2. By Bending Technique
- Rotary Draw Bending: A rotating die is used to create controlled and clean bends on the tube by pulling it around the die. It can bend around tight radius with the support of a mandrel without collapsing the tube.
- Compression Bending: A fixed die receives the tube and the moving arm compresses and bends around the shape. The diameter of each tube has a tendency to be supported by each machine.
- Roll Bending: The tube is formed into large-radius arches using a collection of three or four rollers. It is used with curved frames, rings and structural bends.
- Ram Bending: The bend is formed by forcing the tube over a die with a hydraulic ram. It is a simple method which is commonly employed with simpler shapes and the bigger tube sizes.
- Mandrel Bending: It is a tube and pipe bending process incorporating an internal support-mandrel-that prevents the material from deforming, wrinkling, or even collapsing on the inside of the bend.
Other Types
- Twin Head Benders: They are used to bend both sides of a tube at the same time and are best suited to a symmetrical part of a component such as furniture frame, furniture handle, or car parts.
- Heat Induction Bending: Under this technique, the tube is heated to a regulated temperature and then bent. It is mostly applied in large industrial pipelines.
Technical Specifications of Tube Bending Machine
As Tube Bending Machine suppliers in India, we offer machines with well-defined specifications suited for multiple applications.
| Specification Category | 3 Ton Machine | 5 Ton Machine | 6 Ton Machine | General / Model-Dependent Technical Specs |
|---|---|---|---|---|
| Capacity | 3 Ton | 5 Ton | 6 Ton | • Max Tube Diameter: 6–219 mm (model-based) • Max Wall Thickness: 3 mm (63 mm tube) up to 6.3 mm (219 mm tube) • Max Bending Angle: Up to 190° |
| Automation Grade / Mode | Semi-Automatic | Semi Automatic | Semi Automatic | Available in Manual, Hydraulic, CNC configurations |
| Tube Outside Diameter | 42 mm | 32 mm | 82 mm | Depends on model / tube capacity |
| Square Tube Capacity | 32 × 32 mm | 25 × 25 mm | 60 × 60 mm | — |
| Rectangular Tube Capacity | 60 × 30 mm | 40 × 20 mm | 75 × 40 mm | — |
| Bending Speed | 3 RPM | 3 RPM | 3 RPM | 7–10 d/min up to 47.6 mm/sec (varies by model) |
| Bending Accuracy | 0.20% | 0.20% | 0.20% | CNC models: ±0.05 mm repeatability |
| Bend Center line Radius (CLR) | 2D | 2D | 2D | Minimum approx. 2 × Ø depending on tube size |
| Bend Angle | 180 Degree | 180 Degree | 180 Degree | Up to 190° (model-dependent) |
| Weight | 550 Kg | 400 Kg | 800 Kg | Small machines: a few 100 kg Large CNC machines: up to 11,000 kg |
| Power Requirement | — | — | 7.5 HP | Hydraulic systems: up to 7.5 kW motors All-electric options available |
| Hydraulic Pressure | — | — | — | 160 kg/cm² (16 MPa) or 200 bar (20 MPa) |
| Control & Automation | Semi Automatic | Semi Automatic | Semi Automatic | CNC control for feeding, rotation & bending with ±0.05 mm accuracy |
Features of Tube Bending Machine.
- Stable Bending Mechanism: The solid bending arm and robust clamping mechanism of the machine make sure that it does not have difficulties in bending.
- Manually adjustable Control Settings: Angles, pressure and bending radius can be fine-tuned by the operators to suit the tube profile.
- Well-Balanced Structure: Reinforced frame removes the vibration, helps to maintain the regularity, and assists the prolonged movement of continuous bending operations.
- Safety-Integrated Operation: Switches of electrical protection, emergency stop switches, and hydraulic pressure under control are used to ensure safe working conditions.
- Intuitive User Controls: The bending process is easily managed by using simple control panels that are marked in clear ways and require less training to the operators.
Applications of Tube Bending machine.
- Fabrication of Industrial Pipes and Lines: They are useful in forming pipes which are used in hydraulic circuits, fuel lines, and industrial fluid transportation configurations.
- Frame and Automotive Exhaust Manufacturing: Bearing aids in bending of exhaust pipes, roll cages, chassis frames and protective metal structures.
- HVAC & Cooling System Bending: Perfect in producing bends in refrigeration pipes, air-conditioning pipes, evaporator lines, in addition to cooling coils.
- Manufacturing of Metal Furniture and Fixtures: Helps to bend office furniture tubes, seating frames, display units and decorative metal designs.
- Construction and Architectural Buildings: Applied to railings, metal framing, support arches, roofing structures and custom shaped architectural forms.
Why to Choose Us?
- Industrial bending solution experience: Our knowledge about the mechanics of bending can assist us to make machines that are appropriate to the actual conditions of operation.
- Customized Machine Engineering: We tailor bending range, tooling, machine capacity and automation level to your specific production need.
- Value-Oriented Manufacturing: We provide machines that add value and are affordable, durable, and efficient enough for industry use.
Nisha Engineering Works is one of the well-established Tube Bending Machine manufacturers in India, suppliers and exporters in India. Our bending systems are aimed at providing safe, accurate and high-goods tube shaping in industries. Our specialization is in the production of machines that are more productive such as We also offer specialized models such as Automatic Tube Bending Machine, which require less manual labour and can easily fit in your bending needs. Our goal is to assist industries to produce faster, cleaner, and more precise results in bending with uncompromising confidence. Get in touch with us and find reliable tube bending solutions but with accuracy, solidity and durability.
FAQ
A: Depending on the model, the machine uses hydraulic force, mechanical control or CNC programming to bend the tube around a die.
A: The capacity varies by model. We offer machines that can bend thin tubes to heavy-walled pipes, which can be selected based on your specific industrial needs.
A: Yes. Our machines include safety systems such as overload protection, emergency stop switches, secure clamping, and controlled hydraulic pressure to ensure safe bending operations.
